External upset tubing Manufacturer from China

ShengjiPetro owns two pipeline upsetting production lines with a total upsetting capacity of 20,000 tons per year.
Tubing threading strictly follows API SPEC 5B. The screw thread parameters are controlled internally, and the thread precision is higher than API5B standard.
Magnetic Flux Leakage Testing,Ultrasonic Flaw Testing,Magnetic Particle Testing, Tubing Integrity Testing.

Request a Quick Quote

Description

Technical Data

More Details

Description

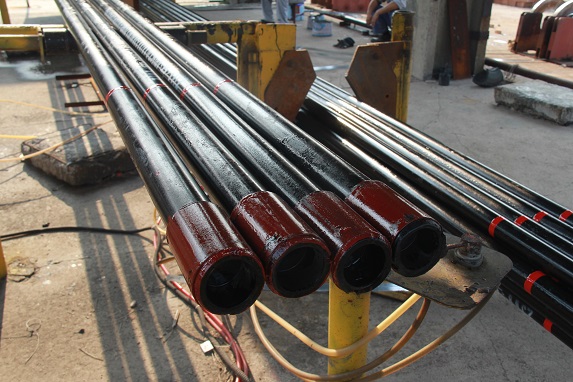

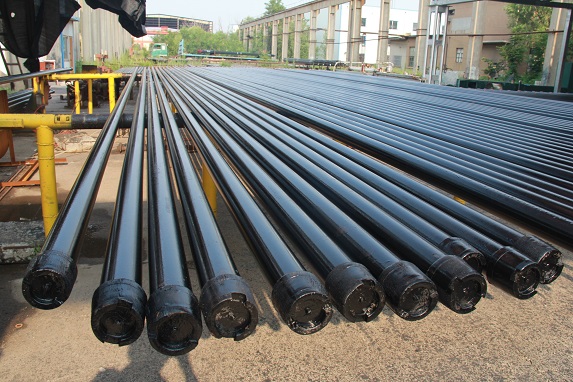

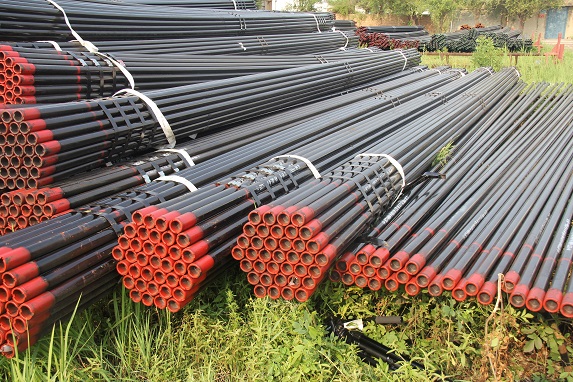

Upsetting is a forging process that makes for a thicker wall on the tube ends. Upset Tubing (EUE) is a long tubing with joint installed in a wellbore to facilitate the extraction of oil and gas. The tubing joints are designed to suit a certain well type, based on the underground conditions and fluids. It acts as a conduit, through which the produced fluids or gas get transmitted from the bottom to the surface. Tubing joint is relatively a single length pipe that can vary in length anywhere from 25 to 30 ft. This ideal length allows easy production as the tubing joint is fitted with threads on both sides and can run down through a well of any depth.

Technical Data

Type	Size(O.D. )		Nominal Weight		W.T.	I.D.	Coupling
Type	in	Mm	Lbf/ft	Kg/m	mm	mm	O.D.mm	Min length mm
NUE J55 L80 N80 P110	1.90	48.26	2.75	4.09	3.68	40.90	55.88	95.25
	2 3/8	60.32	4.60	6.85	4.83	50.66	73.02	107.95
	2 7/8	73.02	6.40	9.52	5.51	62.00	88.90	130.18
	3 ½	88.90	9.20	13.69	6.45	76.00	107.95	142.88
	4 1/2	114.30	12.60	18.75	6.88	100.54	132.08	155.58
EUE J55 L80 N80 P110	1.90	48.26	2.90	4.32	3.68	40.90	63.50	98.42
	2 3/8	60.32	4.70	6.99	4.83	50.66	77.80	123.82
	2 7/8	73.02	6.50	9.67	5.51	62.00	93.17	133.35
	3 ½	88.90	9.30	13.84	6.45	76.00	114.30	146.05
	4 1/2	114.30	12.75	18.97	6.88	100.54	141.30	158.75

More Details

Features

The upsetting process has enhanced the connection strength of the joints.
With the help of thread compound, the external upset tubing can be sealed. There is a space of 0.076mm between the rest and root of the thread. When the thread is screwed up, this space will be filled with thread compound. When the thread compound is solidified, it will jam the space to realize the sealing effect.
Coupling of external upset tubing has light weight (Its minimum weight is 1.55kg and the maximum weight is 6.02kg). Customers can feel convenient to install and use it.
Our product has undergone the manual thread inspection, the nondestructive coupling test, the surface paint spraying and other processes. Therefore, reliable quality of the product and stability of the oil tube connection are ensured.
